CNU Science Phase II: Roof Duct BIM Model

CNU Science Phase II: Roof Duct BIM Model

Two phase project with over 400,000 pounds of ductwork
All ductwork systems were fully BIM modeled in 3D to resolve conflicts with other trades.

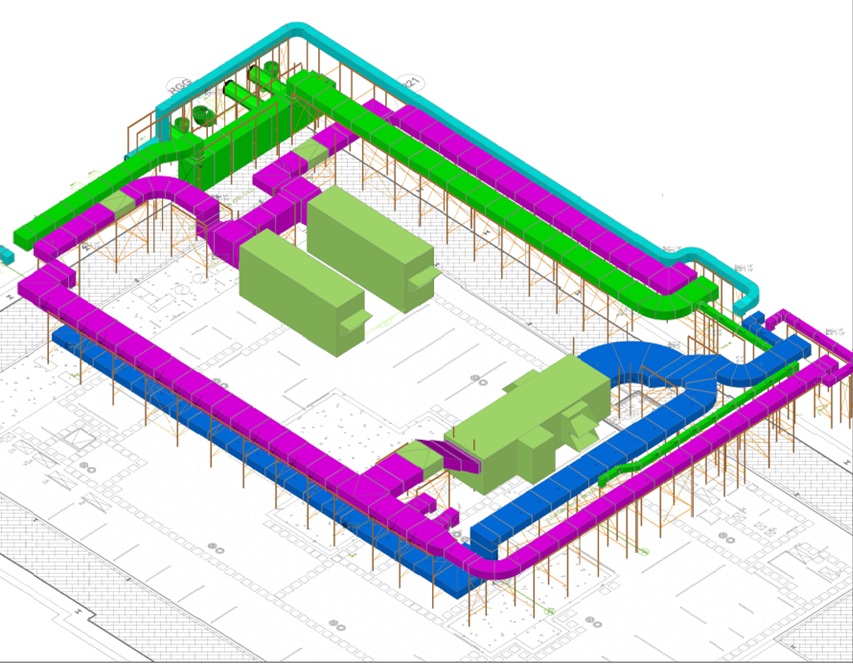

Second phase involved complex roof duct supports that were up to 14 feet in height and 16 feet in width weighing
over 500 lbs. (BIM model of roof duct and supports shown)
